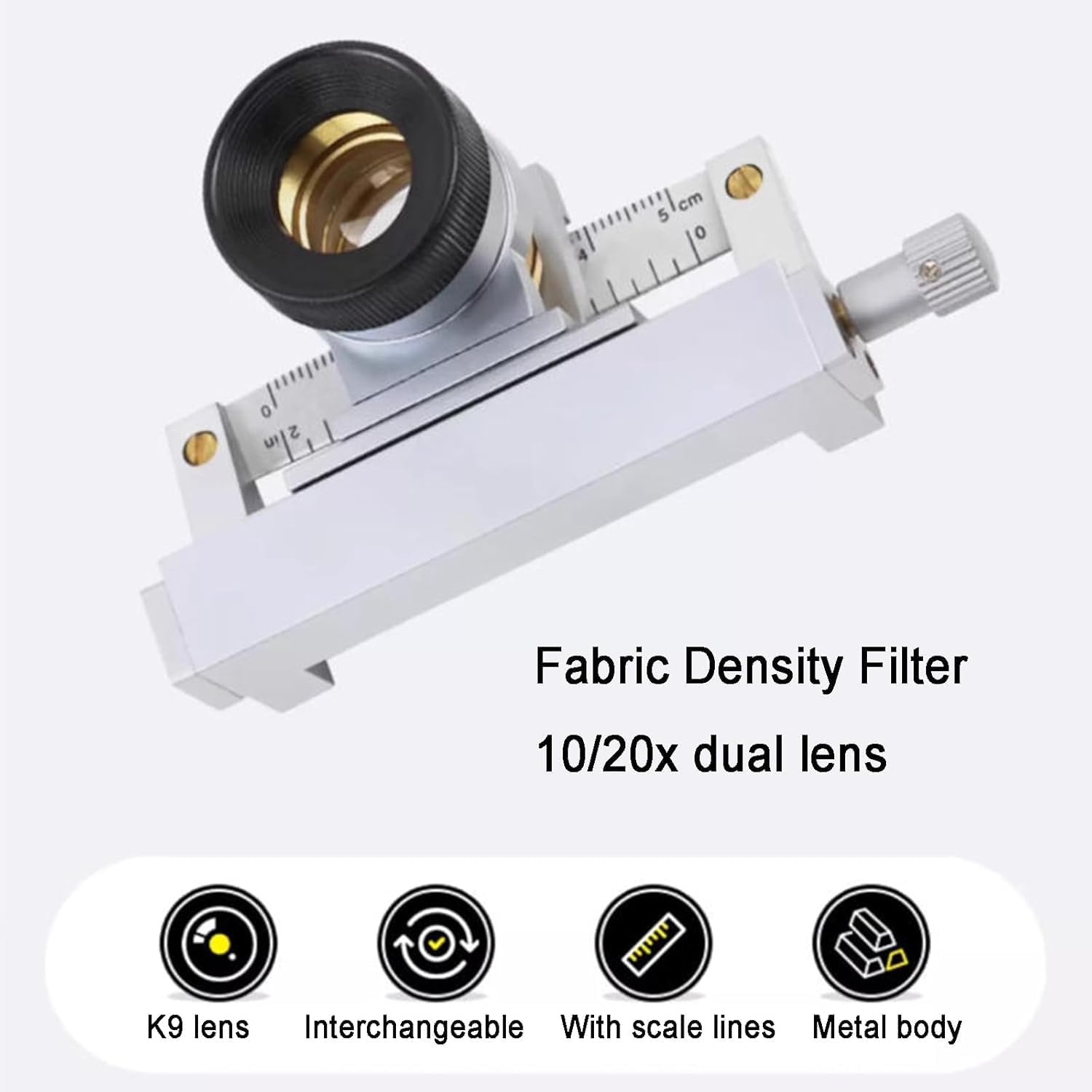

Fabric Density Analysis Mirror, Warp and Weft Measuring Tool, Lens Moving Range 0-50mm, 10x and 20x Magnification, for to See Dot Textile Fabric Inspection

Product description During operation and measurement, place the instrument on the object being measured, parallel to the warp and weft yarns of the fabric. Adjust the lens height to achieve the clearest image. Hold the top surface of the instrument cube with your left hand and rotate the adjustment knob with your right hand until the lens graduations are aligned with the zero position. Then reverse the adjustment knob to count the number of warp and weft yarns per unit length. Specifications: Material: Aluminum Alloy Dimensions: 100X54X36mm Lens: 10x X1-Applicable to fabrics below 60 counts Lens: 20x X1-Applicable to fabrics above 60 counts Lens movement range: 0~5cm Product includes: 1*Fabric Magnifying 2*Lens

• 【Material】Our microscope accessories are made of high-quality aluminum alloy materials to ensure durability and stability for long-term use.
• 【Fabric Magnifying】By using a fabric density scope, the number of warp and weft yarns arranged per unit length in the fabric can be determined, so as to understand the tightness and physical properties of the fabric. ‌
• 【How to Use】Adjust the magnifying glass to the clearest place, determine a starting point, move the density lens, and record the number of vertical yarns until it reaches 1 inch. Then turn 90 degrees and repeat the operation
• 【Parameters】10X, 20X. Lens moving range: 0-5cm (0-2 inches), 10 times, suitable for fabrics below 60 counts, 20 times, suitable for fabrics above 60 counts
• 【Application】The main purpose of the fabric density scope is to measure the warp and weft density of various cotton, wool, silk, linen and blended fabrics
