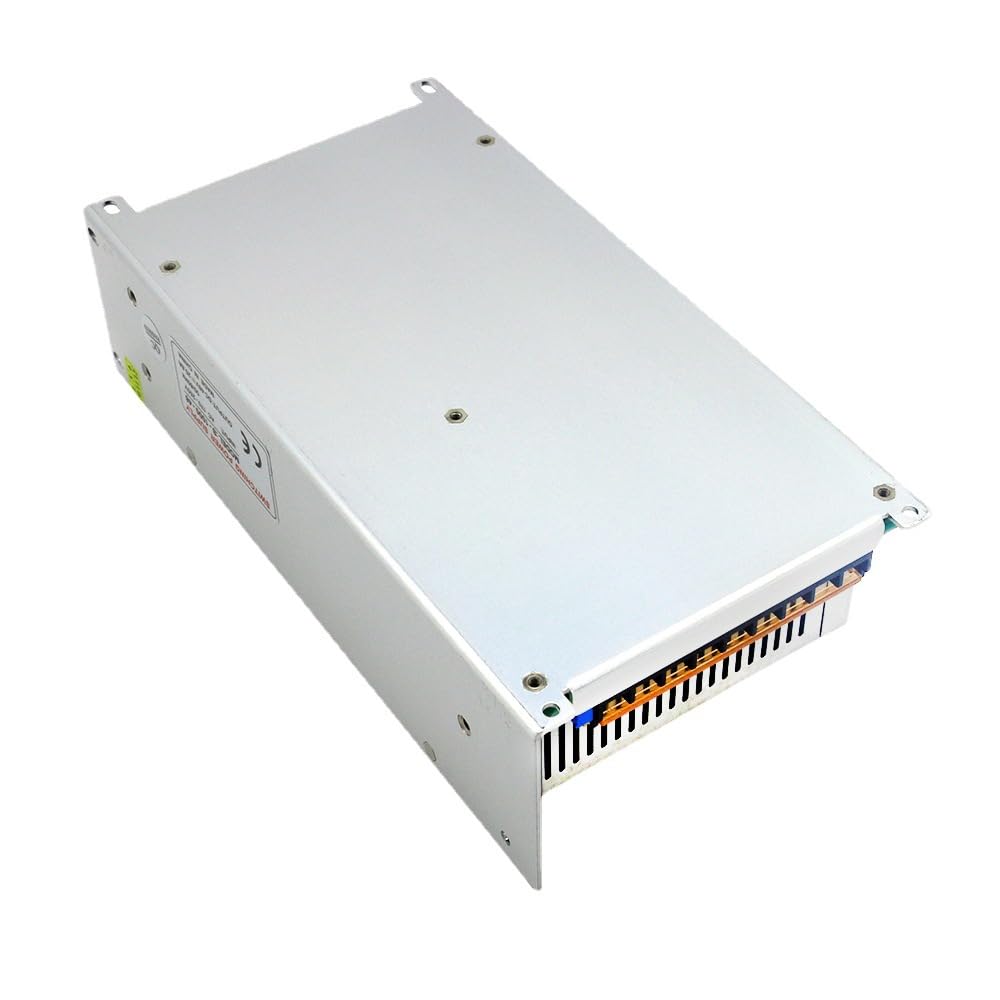

DC 72V 16.7A Switching Power Supply Module, AC 220V Input Industrial Regulated Converter Adapter, IP20 Indoor Transformer for E-Bike Systems, Servo Motors, and Automation

Industrial-Grade DC 72V 16.7A Switching Power Supply (220V Input Only)Deliver a rock-solid, clean 72V DC power source to your specialized high-demand equipment. Designed strictly for professional integration, the S-1200-72 model is the ideal energy hub for custom E-Bike/Golf Cart charging test rigs, high-voltage servo motors, and heavy-duty industrial automation systems. It offers robust 16.7A performance, exceptional 95% efficiency, and a complete suite of integrated safety protections.⚠️ WARNING - PLEASE READ BEFORE PURCHASE:Input Voltage Check: This power supply requires an AC 180-240V input. It will NOT work on standard 110V grids without an external heavy-duty step-up transformer.Operating Environment: IP20 Non-waterproof rating. Must be installed in a dry, well-ventilated indoor electrical cabinet.Wiring Setup: Ensure all AC mains (Live, Neutral, Ground) and DC output (V+, V-) connections are tightly secured to the terminal blocks before powering on. For optimal lifespan, keep continuous loads under 80% (960W) of the maximum rated capacity.Input Voltage Range: AC 180-240V ±10% (220V Only)Output Voltage: DC 72VOutput Voltage Adjustment Range: ±10%Rated Output Current: 0-16.7ARated Output Power: 1200WWork Efficiency: 95%Operating Frequency: 50/60HzOutput Ripple Noise: 120mVp-pModulation Mode: PWM (Pulse Width Modulation)Transistor Connection: Half-bridgeCooling Method: Built-in Active Cooling FanWaterproof Rating: IP20 (Indoor Use Only)Operating Temperature: -40°C to +65°CProduct Dimensions: 242*124*65mmProduct Weight: 1.5 KGOverload Protection: Yes (Self-recovery)Over-voltage Protection: YesShort-circuit Protection: YesInstallation Method: Screw Mounting

• [16.7A High-Voltage Output] Expertly converts AC grid power to a highly stable 72V DC output at up to 16.7A. CRITICAL NOTE: This unit operates on an input range of AC 180-240V (220V nominal) ONLY. It is NOT compatible with standard 110V US wall outlets.
• [Precision Voltage Control] Equipped with a dedicated +V ADJ potentiometer allowing a ±10% output voltage adjustment. Utilizes advanced half-bridge PWM modulation to achieve an outstanding 95% conversion efficiency with ultra-low 120mVp-p ripple.
• [Active Smart Cooling System] Engineered for heavy-duty industrial loads. Measuring 242 x 124 x 65 mm (9.53 x 4.88 x 2.56 in), it features a built-in high-speed cooling fan to ensure rapid heat dissipation and reliable 24/7 operation from -40°C to +65°C.
• [Comprehensive Safety Matrix] CE and RoHS certified for strict compliance. Built with self-recovering overload protection, over-voltage protection, and lock-mode short-circuit protection to safeguard your high-value 72V equipment.
• [Professional Installation Required] Rated IP20 for indoor use only (Non-waterproof). Designed with standardized L/N/GND and V+/V- screw terminal blocks. As a specialized high-voltage industrial component, professional installation by a certified electrician is strictly required.
